Products

Anchorage for Facing Work


Unlined Anchor

AISI 430-034-316

Please tell the product code in your order.

Product Code ∅
mm 		T
mm 		W
mm		 H
mm		 Weight
(pcs/kg)
STS F20 M10 3 27 20 0,055
STS F60 M10 3 27 40 0,075
STS F60 M10 3 27 60 0,110
STS F80 M10 3 27 80 0,134
STS F100 M10 3 27 100 0,158

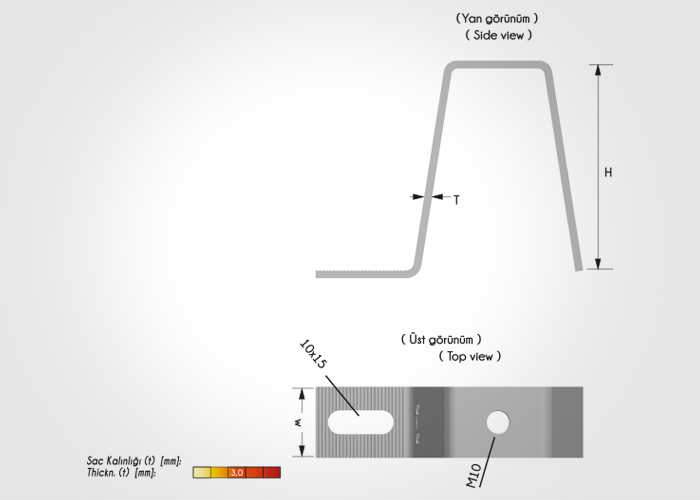

Striped Anchor

AISI 430-034-316

Please tell the product code in your order.

Product Code ∅
mm 		T
mm 		W
mm		 H
mm		 Weight
(pcs/kg)
STS F20 T M10 3 27 20 0,055
STS F 40 T M10 3 27 40 0,075
STS F60 M10 3 27 60 0,110
STS F80 M10 3 27 80 0,134
STS F100 M10 3 27 100 0,152
Striped Square Washer

AISI 430-034-316

Please tell the product code in your order.

Product Code ∅
mm 		T
mm 		W
mm		 Weight
(pcs/kg)
STS TP 8 3 27 0,0075
Twisted Leaf Anchor

AISI 304 - AISI 316-430

Please tell the product code in your order.

Product Code T
mm 		W
mm		 L
mm		 Weight
(pcs/kg)
STS BYA2-12 2 18 120 0,034
STS BYA2-15 2 18 150 0,042
STS BYA2-17 2 18 170 0,048
STS BYA2-20 2 18 200 0,056
STS BYA2-22 2 18 220 0,062
STS BYA3-12 2 18 120 0,051
STS BYA3-15 2 18 150 0,063
STS BYA3-17 2 18 170 0,072
STS BYA3-20 2 18 200 0,084
STS BYA3-22 2 18 220 0,093
Leaf Anchor

AISI 304 - AISI 316-430

Please tell the product code in your order.

Product Code T
mm 		W
mm		 L
mm		 Weight
(pcs/kg)
STS YA2-12 2 18 120 0,034
STS YA2-15 2 18 150 0,042
STS YA2-17 2 18 170 0,048
STS YA2-20 2 18 200 0,056
STS YA2-22 2 18 220 0,062
STS YA3-12 2 18 120 0,051
STS YA3-15 2 18 150 0,063
STS YA3-17 2 18 170 0,072
STS YA3-20 2 18 200 0,084
STS YA3-22 2 18 220 0,093
Wire Anchor

AISI 304 - AISI 316 - AISI 430(204)

Please tell the product code in your order.

Ürün Kodu ∅
mm 		L
mm		 Weight
(pcs/kg)
STS TA5-15 5 150 0,016
STS TA5-17 5 170 0,019
STS TA5-200 6 200 0,022
STS TA5-22 6 220 0,025
Adjustable Arm

AISI 430-304-316

Please tell the product code in your order.

Product Code ∅
mm 		L
mm 		e
mm		 Weight
(pcs/kg)
STS AK M10 40 24 0,017
STS AK M10 50 24 0,021
STS AK M10 60 24 0,025
STS AK M10 70 24 0,030
STS AK M10 80 24 0,033§
Flanged Pin

AISI 304 - AISI 316 - AISI 430(204)

Please tell the product code in your order.

Product Code ∅
mm 		L
mm		 Weight
(pcs/kg)
STS PMF5 5 50 0,0082
STS PMF5 5 60 0,0095
STS PMF5 5 70 0,0095
Pin

AISI 304 - AISI 316 - AISI 430(204)

Please tell the product code in your order.

Product Code ∅
mm 		L
mm 		Weight
(pcs/kg)
STS PM5 5 50 0,0080
STS PM6 5 60 0,0095
STS PM7 5 70 0,0105
Plastic Tube

AISI 304 - AISI 316 - AISI 430(204)

Please tell the product code in your order.

Product Code ∅
mm 		L
mm 		Weight
(pcs/kg)
STS PC5 7 40 0,0020
U Profile

We have some covering types.

Please tell us covering type and product code information in your order.

Product T
mm 		W
mm		 H
mm		 Weight
(pcs/kg)
STS UP3-3525 2,5 35 35 1,525
STS UP3-3530 3 35 35 1,830
STS UP3-4040 4 40 40 2,460
STS UP3-5050 5 50 50 3,825
L Profile

We have some covering types.

Please tell us covering type and product code information in your order.

Product Code T
mm 		W
mm		 H
mm		 Weight
(pcs/kg)
STS LP3-1525 2,5 15 85 1,558
STS LP3-2025 2,5 20 90 1,480
STS LP3-1530 3 15 85 1,870
STS LP3-2030 3 20 90 1,776
L Flag

We have some covering types.

Please tell us covering type and product code information in your order.

Product Code T
mm 		W
mm		 H
mm		 Weight
(pcs/kg)
STS LB10-3 3 50 100 0,340
STS LB12-3 3 50 120 0,380
STS LB15-3 3 50 150 0,440
STS LB20-3 3 50 200 0,540
STS LB10-4 4 50 100 0,450
STS LB12-4 4 50 120 0,500
STS LB15-4 4 50 150 0,590
STS LB20-4 4 50 200 0,720
Steel Dowel

We have some covering types.

Please tell us covering type and product code information in your order.

Product Code M
mm 		L
mm 		∅
mm		 Weight
(pcs/kg)
STS ÇSDM8 8 75 10 0,040
STS ÇSDM10 10 85 12 0,066
STS ÇSDM10-1 10 110 12 0,095
STS ÇSDM12 12 90 14 0,118
Steel Dowel

We have some covering types.

Please tell us covering type and product code information in your order.

Product Code M
mm 		L
mm 		∅
mm		 Weight
(pcs/kg)
STSÇSDM8K 8 75 10 0,0283
STSÇSDM10K 10 90 12 0,05568
STSÇSDM12K 12 90 14 0,08236
STSÇSDM10-1K 10 110 12 0,06672
STSÇSDM12-K 12 110 14 0,09787
Bolts, Nuts and Washers

We have some covering types.

Please tell us covering type and product code information in your order.

Product Code A
mm 		B
mm 		H
mm		 Weight
(pcs/kg)
STS C8 x 25 13 15 25 0,012
STS C10 x 25 17 19 25 0,025
STS C12 x 25 21 23 25 0,035
STS SM8 13 15 6,5 0,004
STS SM10 17 19 6,5 0,010
STS SM12 21 23 6,5 0,015
Product Code A
mm 		B
mm 		Weight
(pcs/kg)
STS M8-P 15 8,5 0,0013
STS M10-P 19 10,5 0,0032
STS M12-P 23 12,5 0,0040
